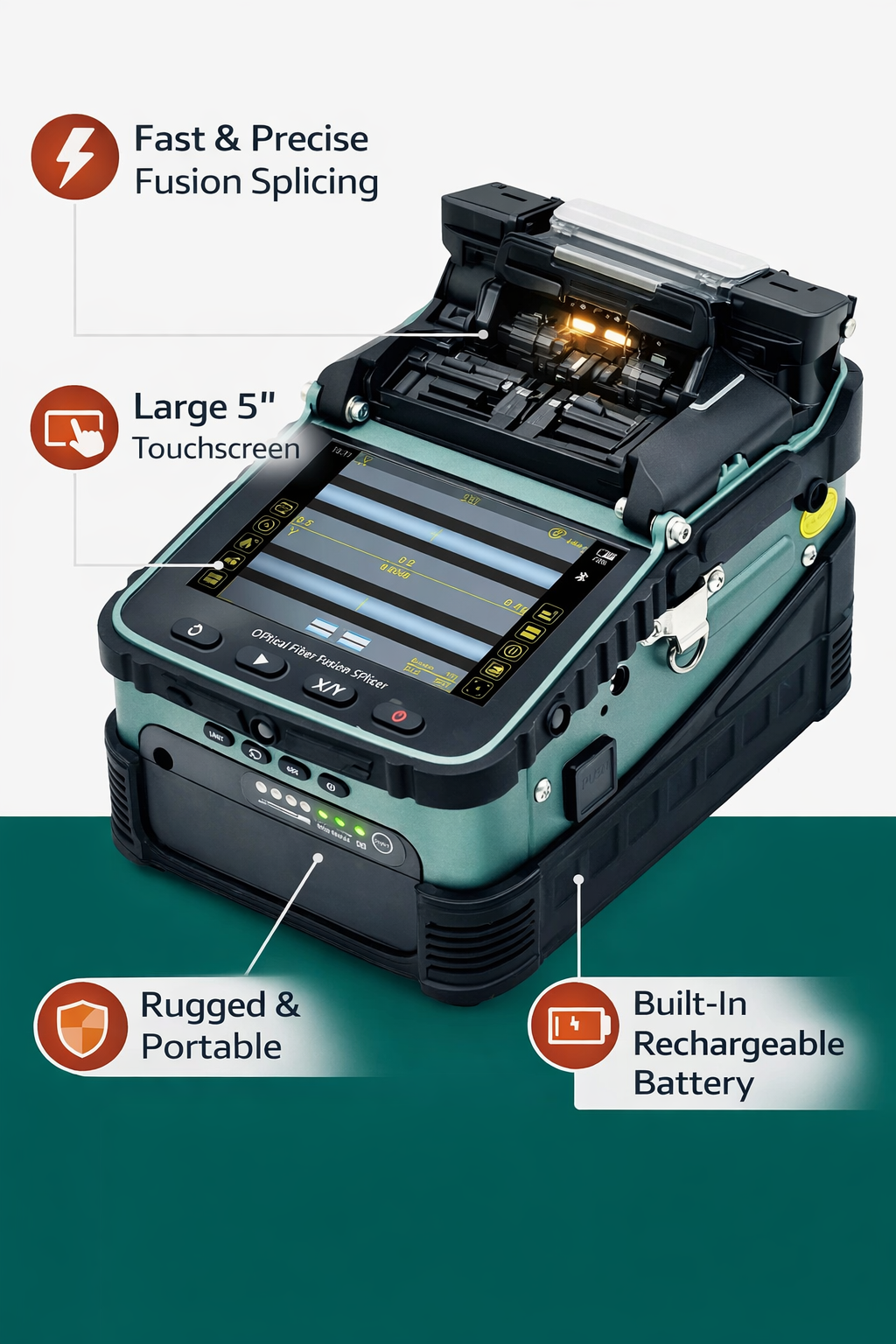

Description
Fiber alignment Core/cladding
Motor number 6 motors (accurate of fiber alignment : 0.3pm)
Splicing time 8s
Heating mode 18s, can be customized according to the external environment
Fiber type Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber(DSF/G.653), non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.
The cladding diameter 80-150 pm
Splicing loss 0.02dB (SM ) 0.01dB (MM) 0.04dB (DS/NZDS)
Splicing mode Automatic focusing core alignment, conventional/high precision welding
Splicing way Automatic, semi-automatic
Fiber holder Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
VFL The machine comes with: power: 15mW, 2Hz flashing and steady on mode
OPM Wavelength: 850nm , 1300nm 131Onm , 1490nm 1550nm , 1625nm 980nm , 1270nm , 1577nm , 1650nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm -+3dBm range)
Machine system languages 11 languages available (Chinese English , French Russian , Ukrainian Italian , Portuguese, Polish Spanish Thai Arabic)
Battery capacity "5200mAh large capacity lithium battery charging time ñ3.0 hours; It can continuously weld and heat about 160
cores"
Magnification 320x (X or Y axis single display) , 200x (x and Y axis dual display)
Fiber diameter Coating diameter: 80-150pm/Coating diameter: 100-1000pm
Cutting length Coating layer 250pm below: 8-16mm/coating layer 250-1000pm: 16mm
Heat shrink tube 60mm 50mm 40mm , 25mm
Tensile testing standard 2N
display 5-inch color touchscreen
Boot time 1s, boot can enter the working mode
Data is stored Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.
Wireless communication "Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is
60m"
Software upgrade Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
Management function The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment.
Return loss Better than 60 db
Product protection Waterproof, dustproof and fall proof
Power supply Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
The work environment Temperature: -15 - +50°C, humidity: < 95%RH (no condensation), working altitude: 0 - 5000m, maximum wind speed: ñ15m/s
