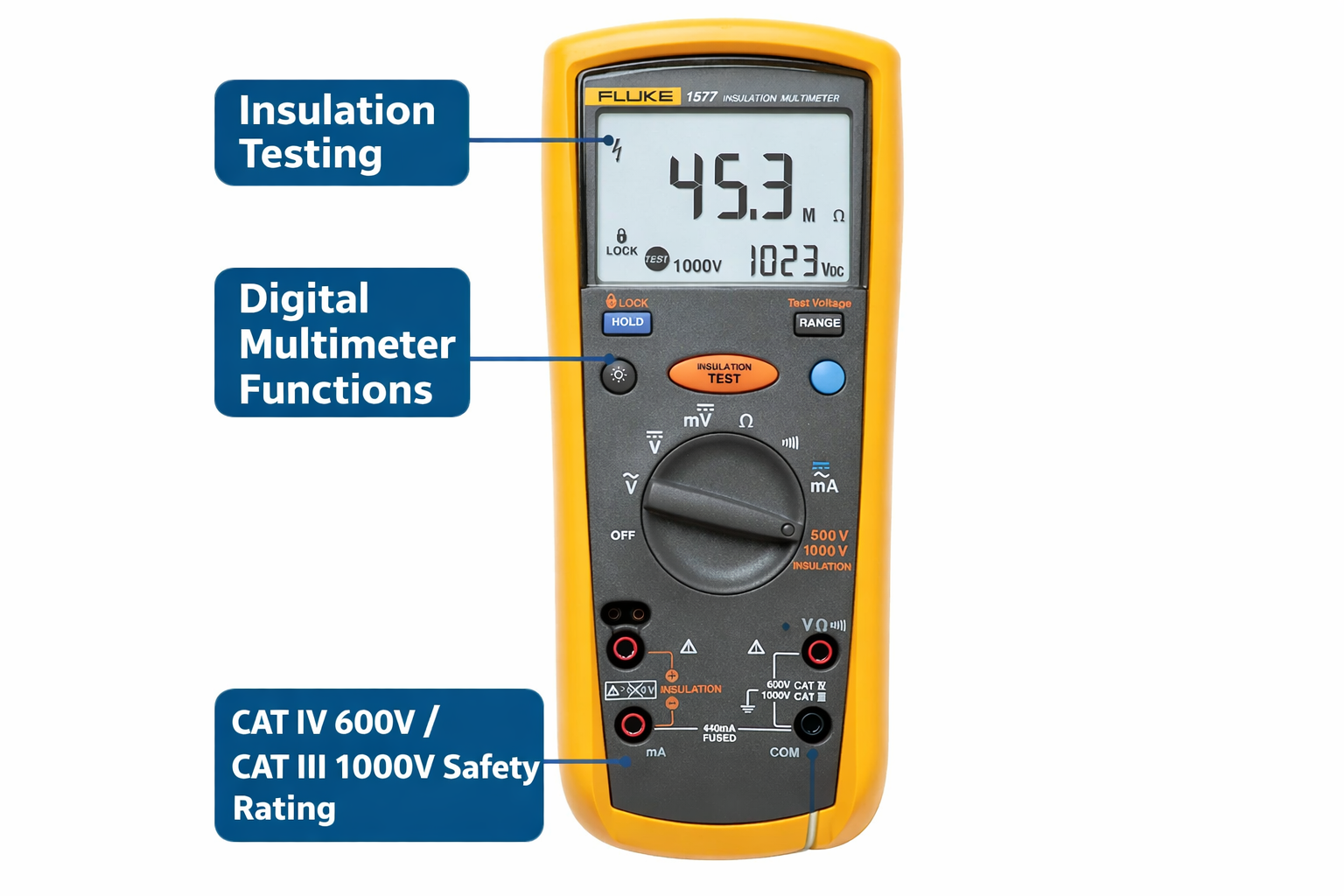

FLUKE -1577- FC Insulation Tester

Specifications Voltage DC Maximum voltage 1000 V Accuracy ±(0.2%+2) Maximum resolution 0.001 V Voltage AC Maximum voltage 1000 V Accuracy ±(2%+3) Maximum resolution 0.1 mV Current DC Maximum amps 400 mA Amps accuracy ±(1.0%+2) Maximum resolution 0.01 mA Current AC Maximum amps 400 mA Amps accuracy ±(2.0%+2)* Maximum resolution 0.01 mA Resistance Maximum resistance 50 MΩ Accuracy ±(1.2%+2) maximum resolution 0.1Ω Insulation Test Minimum test current @ 1kΩ/V 1 mA Test voltages 500, 1000 V Maximum resistance per test voltage 50 V 100 V 250 V 500 V 1000 V 600 MΩ Maximum resolution per test voltage 50 V 0.01…
