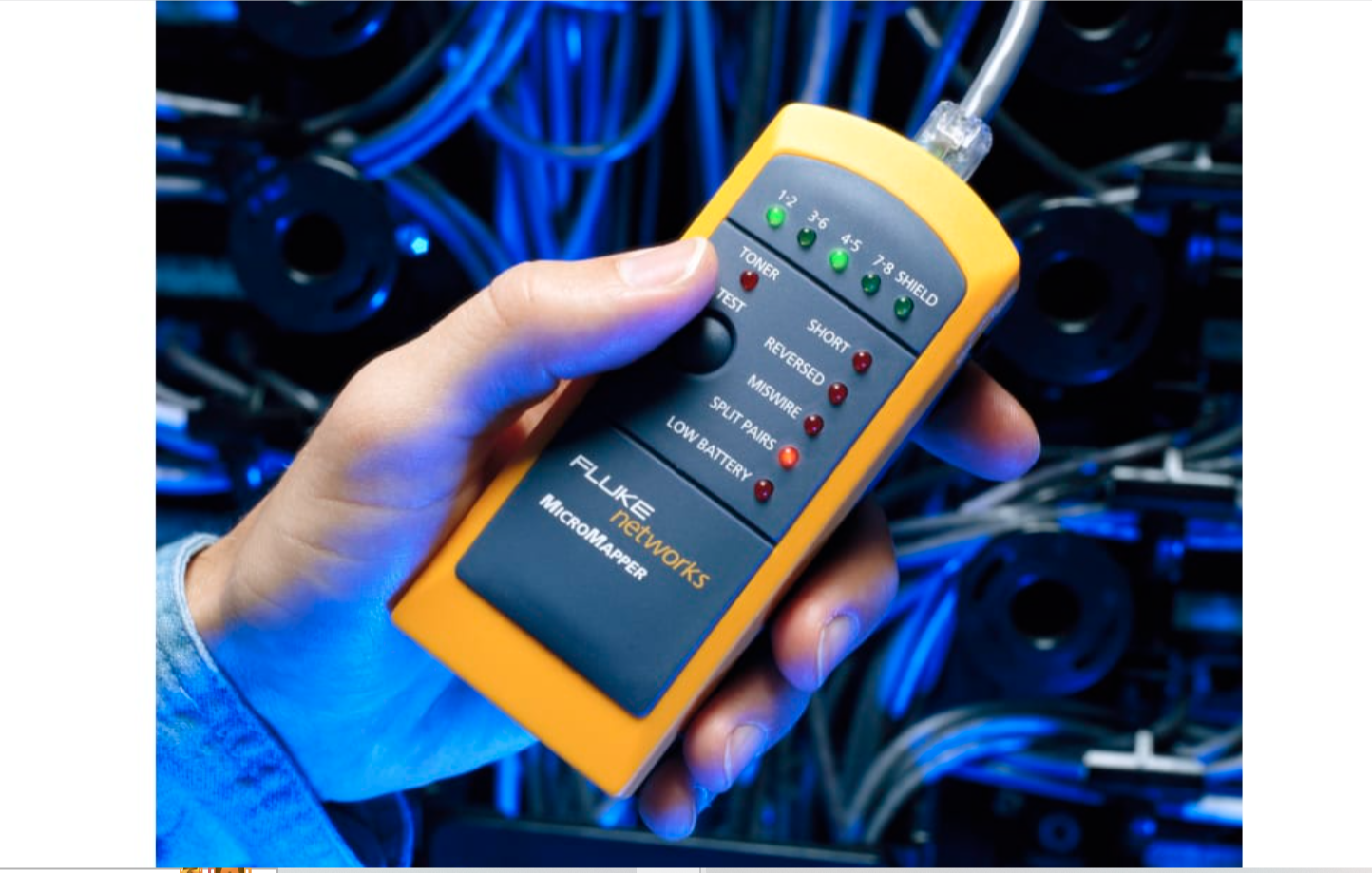

MT-8200-49A – FLUKE NETWORKS MICROMAPPER

Key Features

• Wiremap testing – Checks for opens, shorts, crossed pairs, reversed pairs, split pairs, and shielding integrity using LED indicators Fluke+12Fluke+12Newegg.com+12.

• Built‑in tone generator – Emits two distinct tones that work with analog probes (like Fluke IntelliTone) for tracing hidden cables in walls, floors, or ceilings RS Components+13Fluke+13PB Tech+13.

• Remote unit included – Enables one‑person testing of installed patch cables or infrastructure links Newegg.com+14Fluke+14RS Components+14.

📏 Specifications

• Dimensions: ~125 × 52 × 30 mm (4.93 × 2.05 × 1.18 in) PartSearch+6تجهیزات اندازه گیری فلوک+6TEquipment+6

• Weight: ~130 g (4.6 oz) TEquipment+3تجهیزات اندازه گیری فلوک+3Newegg.com+3

• Cable length support: 0.6 m minimum, up to 200 m (656 ft) of twisted‑pair Hisco+14تجهیزات اندازه گیری فلوک+14TEquipment+14

• Display: 5 green LEDs (pairs and shield), 6 red LEDs indicating Toner, Short, Reversed, Miswire, Split Pairs, Low Battery Fluke+14PASS Ltd+14Newegg.com+14

• Power: Uses four AAA alkaline batteries; includes low‑battery LED and auto‑sleep feature Hisco+15تجهیزات اندازه گیری فلوک+15Test Meter Pro+15

✅ Advantages

• Simple one‑button operation – Intuitive testing with clear LED readouts TEquipment+8Test Meter Pro+8PASS Ltd+8.

• Reliable build – Solid Fluke construction; lightweight and portable Amazon+15Test Meter Pro+15Manua.ls+15.

• Versatility – Works with standard RJ‑45/RJ‑11 cables; tone generator adds tracing capability.

⚠️ Limitations

• Limited to continuity and wiring faults – Cannot perform advanced diagnostics like a TDR (time‑domain reflectometry) or certification testing Specialized+10Test Meter Pro+10Newegg.com+10.

• No data logging – Results are visual only, with no internal storage Test Meter Pro.

• Basic accessory set – Comes with remote, short patch cable, and AAA batteries; case not always included PB Tech+1Test Meter Pro+1.

🔧 Included in the Kit

• MT‑8200‑49A main unit

• Remote identifier

• RJ‑45 patch cable

• Four AAA batteries

• User guide (manual) TEquipment+12تجهیزات اندازه گیری فلوک+12RS Components+12Test Meter Pro+6Newegg.com+6Manua.ls+6

📌 Conclusion

The Fluke MT‑8200‑49A MicroMapper is ideal for network installers, electricians, and IT technicians needing a rugged, easy-to-use tool for verifying cable integrity and performing simple continuity checks on twisted-pair Ethernet setups. It’s not intended for certification or distance-to-fault measurement, but it excels at its core purpose: fast, reliable wiremap verification and basic cable tracing.
